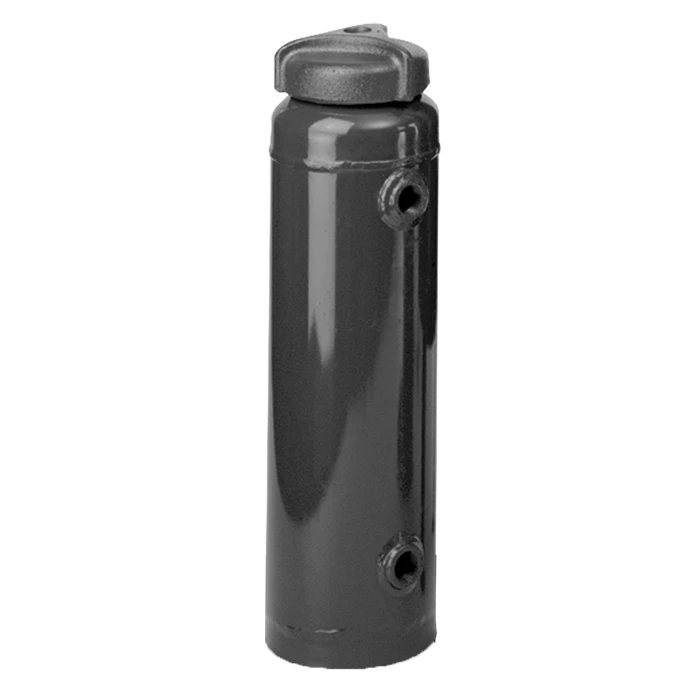

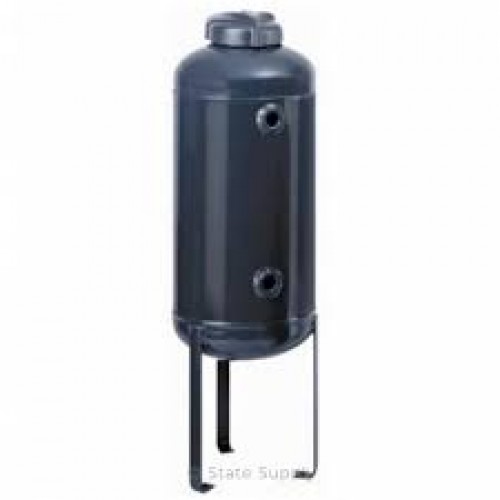

J.L. Wingert 5HD (5 Gallon) Flat Bottom Bypass Feeder

Model: 5HD Series: J.L. Wingert Flat Bottom Bypass Feeders Capacity: 5.79 Gallons (21.92 Liters) Design: Flat bottom with vertical-style configuration Material: Carbon steel with epoxy coating Max Pressure: 200 PSI (13.6 Bar) Max Temperature: 200°F (93°C) Closure Type: 3-1/2″ quarter-turn cast iron cap with Buna-N O-ring for easy sealing Inlet/Outlet/Drain Connections: 3/4″ FNPT Dimensions: Approximately 21-1/8″ height, 10-5/8″ diameter Weight: Approximately 19 lbs Application: Ideal for introducing treatment chemicals into hot and chilled water systems, cooling towers, boilers, and other liquid streams Maintenance: Easy installation and replacement; compatible with filter bag kits for enhanced particulate removal
